Name: STA Shielded Instrument Cable Flame Retardant Computer Cable
Brand: STA Shielded Instrument Cable
Price: 1 USD

Ask Lasest Price
Brand Name :	STA Shielded Instrument Cable
Model Number :	DJYPVP-300/500V ZC-DJYPVP 300/500V
Certification :	IEC,CE,ISO
Price :	Negotiable
Payment Terms :	L/C,T/T
Supply Ability :	100KM/Week
Delivery Time :	10Days

Add to Cart

APPLICATION

STA Shielded Instrument Cable Flame Retardant Computer Cable

T1CW/06-2009.GB/T3956,GB/T 19666

Voltage Rating Uo/U: 300/500V
Maximum system voltage (Um):600V
Maximum operating temperature of conductor:+70℃
Operating ambient temperature: -20℃~+45℃
Cable laying temperature:Not less than 0℃(When the ambient temperature is below 0℃, the cable should be preheated.)
Minimum Bending Radius: During installation: 12D After installation: 10D

No of Pair	No of Core	Section mm²	Insulation thickness mm	Total screen single filament diameter mm	Steel Tape Thickness mm	Outer sheath thickness mm	Approx cable outer diameter mm	Approx cable weight kg/km
1	2	0.5	0.50	0.15	02	1.1	10.7	148
2	2	0.5	0.50	0.15	02	1.2	136	226
3	2	0.5	0.50	0.15	0.2	1.2	14.1	249
4	2	0.5	0.50	0.15	0.2	12	14.9	281
5	2	0.5	0.50	0.15	02	1.2	158	315
6	2	0.5	0.50	0.15	02	12	16.7	351
7	2	0.5	0.50	0.15	0.2	1.2	16.7	360
8	2	0.5	0.50	0.2	02	13	18.6	437
9	2	0.5	0.50	0.2	02	1.3	19.7	481
10	2	0.5	0.50	0.2	0.2	13	20.4	511
11	2	0.5	0.50	0.2	0.2	13	204	522
12	2	0.5	0.50	0.2	02	13	20.9	548
13	2	0.5	0.50	0.2	02	13	21.7	583
14	2	0.5	0.50	0.2	02	13	21.7	594
15	2	0.5	0.50	0.2	02	14	22.9	644
16	2	0.5	0.50	0.2	0.2	14	22.9	654
17	2	0.5	0.50	0.2	02	14	238	696
18	2	0.5	0.50	0.2	02	14	238	707
19	2	0.5	0.50	0.2	0.2	14	238	712
20	2	0.5	0.50	0.2	0.2	14	24.9	763
21	2	0.5	0.50	0.2	0.2	14	24.9	774
22	2	0.5	0.50	0.2	0.2	14	26.0	822
23	2	0.5	0.50	0.2	0.2	14	26.0	832
24	2	0.5	0.50	0.2	0.2	1.5	273	891
25	2	0.5	0.50	0.2	02	1.5	27.3	902
26	2	0.5	0.50	0.2	02	1.5	273	912
27	2	0.5	0.50	0.2	0.2	1.5	28.2	966
28	2	0.5	0.50	0.25	02	1.5	29.2	1037
29	2	0.5	0.50	0.25	0.2	1.5	29.2	1048
30	2	0.5	0.50	0.25	0.2	1.5	29.2	1059
31	2	0.5	0.50	0.25	0.2	1.5	30.1	1105
32	2	0.5	0.50	0.25	02	15	30.1	1116
33	2	0.5	0.50	0.25	02	1.5	30.1	1126
34	2	0.5	0.50	0.25	0.5	1.6	32.5	1473
35	2	0.5	0.50	0.25	0.5	1.6	325	1483
36	2	0.5	0.50	0.25	0.5	16	325	1494
37	2	0.5	0.50	0.25	0.5	1.6	325	1492
38	2	0.5	0.50	0.25	0.5	16	33.6	1568
39	2	0.5	0.50	0.25	0.5	1.6	33.6	1579
40	2	0.5	0.50	0.25	0.5	16	33.6	1590
41	2	0.5	0.50	0.25	0.5	1.6	34.7	1656
42	2	0.5	0.50	0.25	0.5	1.6	34.7	1667

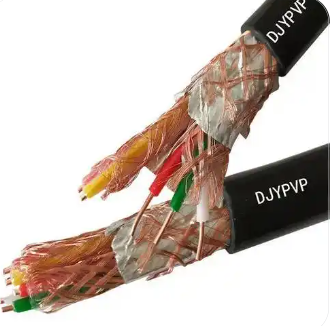

STA Shielded Instrument Cable Flame Retardant Computer Cable

STA Shielded Instrument Cable Flame Retardant Computer Cable

STA Shielded Instrument Cable Flame Retardant Computer Cable

1‌. What is the voltage rating (300/500V) used for?‌

This ‌low-voltage rating‌ ensures safe operation in control circuits and instrumentation systems.

2. Where should this cable be installed?‌

Ideal for ‌industrial settings, power substations, and data centers‌ where EMI protection and flame resistance are critical.

3‌. Is this cable suitable for outdoor use?‌

Yes, due to its ‌armor and PVC sheath‌, but UV-resistant versions are recommended for prolonged sun exposure.

4‌. Does it comply with international standards?‌

While meeting Chinese (GB) standards, similar cables may comply with ‌IEC 60332-1 (flame retardancy) and IEC 60502 (armor requirements)‌.

5. How does it compare to ordinary shielded cables?‌

Unlike basic shielded cables, this variant offers ‌flame retardancy, armor, and higher durability‌, making it superior for industrial use.
